高效熱量交換技術
Efficient heat exchange technology
傳統蒸汽發生設備或蒸汽鍋爐是通過周期性的分段式蒸汽加熱，使儲水溫度達到預定標準而實現周期性蒸汽供應。而我司力威蒸汽發生器是采用特殊設計的不銹鋼熱交換器，大大提升換熱性能，同時熱交換器表面經特殊處理，可有效防腐防碳化，保持長久的換熱效率。
Traditional steam generating equipment or steam boiler realizes periodic steam supply through periodic sectional steam heating, so that the water storage temperature reaches a predetermined standard.The special designed stainless steel heat exchanger is adopted by our company to greatly improve the heat exchange performance. Meanwhile, the surface of the heat exchanger is specially treated, which can effectively prevent corrosion and carbonization. and maintain long-term heat exchange efficiency
自動循環啟停技術
Automatic cycle start-stop technology
用戶可根據需求自助預設蒸汽壓力和回差壓力。當系統檢測到蒸汽壓力小于預設的回差壓力時，設備分機逐組遞增燃燒;當檢測到蒸汽壓力大于回差壓力時，設備分機逐組遞減燃燒。
Users can self-preset steam pressure and differential pressure as required. When the system detects that the steam pressure is less than the preset differential pressure, the equipment units burn incrementally group by group: Whenit is detected that the steam pressure is greater than the differential pressure, the equipment units will burn indescending order
冷凝式蒸汽熱源技術
condensing steam heat source technology

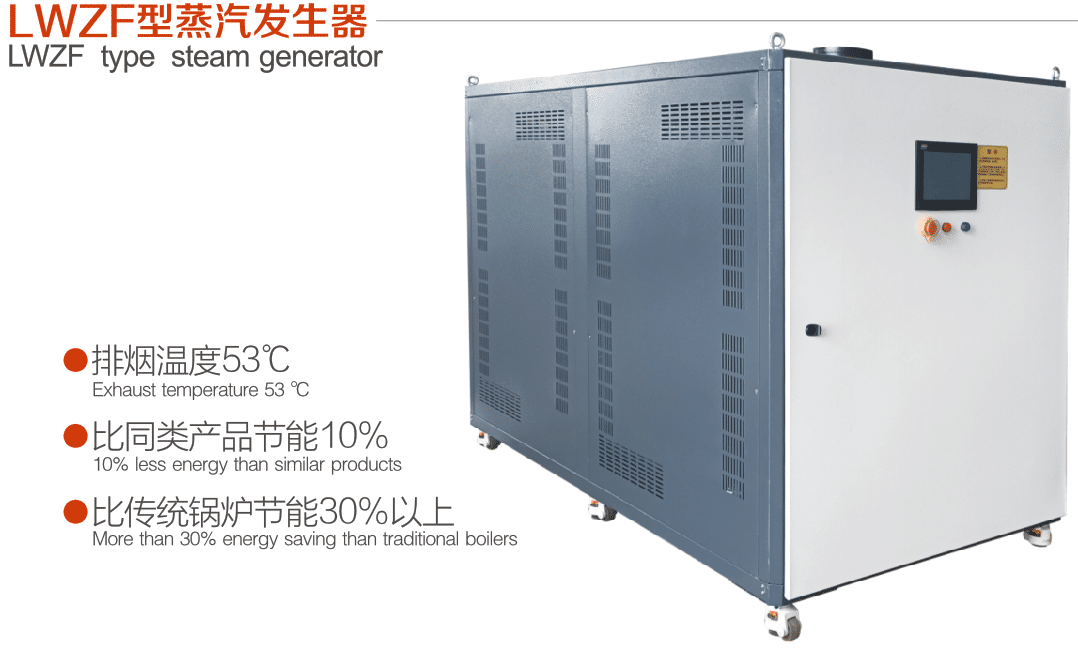

力威蒸汽發生器采用冷凝蒸汽發生一體化技術，高溫?zé)煔饨?jīng)過特殊設計的二次回收熱量裝置吸熱利用后，有效提高產品熱效率，同時降低排煙溫度。經國家權威機構驗證，排煙溫度可低至53℃，安裝能使用PVC排煙管，降低投資和運行成本。
Leway Speed-energy steam can adopt the integrated technology of condensation and steam generation. After the high-temperature flue gas is absorbed and utilized by the specially designed secondary heat recovery device, the thermal efficiency of the product can be effectively improved and the exhaust temperature can be reduced at the same timeVerified by the national authority, the exhaust temperature can be as lowas 53℃and PVC exhaust pipes can be used for installation, thus reducinginvestment and operating costs.
全新內置泵連接技術
New built-in pump connection technology
全新內置泵連接技術。我們經過嚴謹?shù)挠?jì)算和數百次攻克性試驗，為每一套設備精心挑選性能相匹配的增壓泵，使其能發揮得更出色、更穩定。同時用戶不必在安裝過程中添置增壓泵，為您省下安裝成本!技術成本!維護成本!
New built-in pump connection technology.After rigorous calculation ang hundreds of conquering tests, we carefully select booster pumps with matcning performance for each set of equipment, so that they can perform better and more stably. At the same time, users don't need to add booster pumps in the installation process, saving you installation costs!Technical cost!Maintenance cost!
| 蒸汽發生器主要技術參數 | |||||||
| 項目 | 單位 | LWZF0.3-*-Q | LWZF0.5-*-Q | LWZF0.75-*-Q | LWZF1.0-*-Q | LWZF1.5-*-Q | LWZF2.0-*-Q |
| 熱輸入Heat input | KW | 150-300 | 150-450 | 150-600 | 150-900 | 150-1200 | 150-1800 |
| 蒸發量Steam capacity | kg/h | 200-400 | 200-600 | 200-800 | 200-1200 | 200-1600 | 200-2400 |
| 蒸汽溫度Steam temperature | ℃ | 100-216℃ | |||||
| 蒸汽壓力Steam pressure | MPa | 0.1-1.25 | |||||
| 額定燃?xì)鈮毫ated gas pressure | Pa | 天然氣natural gas2000 /液化氣LPG2800 | |||||
| 耗氣量Consumption （天然氣natural gas） | Nm3/h | 14.7-29.4 | 14.7-44.1 | 14.7-58.8 | 14.7-88.2 | 14.7-117.6 | 14.7-176.4 |
| 適用電源Applicable power supply | / | AV380V/50Hz | |||||
| 最大耗電量Max Power consumption | W | 2920 | 5080 | 5444 | 6160 | 6880 | 7420 |
| 熱效率thermal efficiency | % | 98-102 | |||||
| 排煙溫度exhaust temperature | ℃ | ≤55 | |||||
| 防水等級waterproof level | / | IPX4 | |||||
| 外型尺寸overall dimensions | mm | 1920*1230*1927 | 1920*1230*2682 | 1920*1630*1927 | 1920*1630*2682 | 2720*1630*1927 | 2720*1630*2682 |
| 蒸汽出口Steam outlet | / | DN40 | DN40 | DN40 | DN40 | DN40*2 | DN40*2 |
| 進水管water inlet | / | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| 燃?xì)饪贕as inlet | / | DN65 | DN65 | DN65 | DN65 | DN100 | DN100 |
| 排煙管exhaust smoke outlet | / | φ400 | φ400 | φ400 | φ400 | φ400*2 | φ400*2 |
| 循環水管進出口 Inlet and outlet of circulating water pipe | / | DN40 | DN40 | DN65 | DN65 | DN65 | DN80 |
| 冷凝水管Condensate water outlet | / | DN15 | DN15 | DN15 | DN15 | DN15 | DN25 |
注：表中數據及圖片僅供參考，產品以實物為準，如因改機型而變更恕不另行通知。
